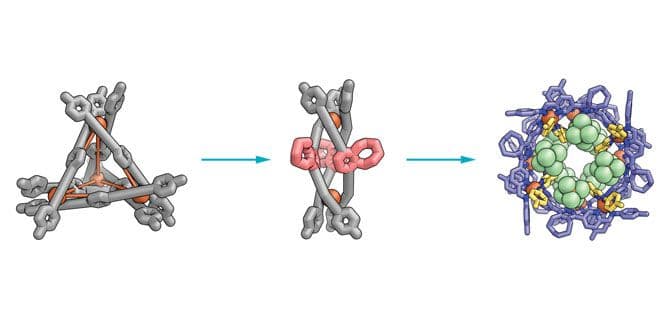

In metal-containing supramolecular complexes, organic ligands self-assemble around metal atoms to form molecular cages of various sizes and shapes. Researchers can change a complex’s shape by changing either the metal or the ligand, but they are still learning how to produce a desired shape by design. Now, researchers have created a supramolecular complex that converts between three different shapes—a tetrahedron, helix, and prism—with the help of various chemical stimuli.
“Switching between the structures allows us to make use of all their properties on demand,” says Derrick A. Roberts, who worked on the project as a graduate student at the University of Cambridge and is now at the Karolinska Institute. Prismlike supramolecular complexes can punch holes in cell membranes and mimic artificial ion channels. Helical complexes can interact with DNA, and tetrahedral cages can trap reactive chemicals. “This complex is like a Swiss Army knife,” he says.
The Cambridge researchers, led by Jonathan R. Nitschke, first combined iron atoms and nitrogen-containing ligands to form a tetrahedral complex. Then they added cyclooctyne, which snapped onto a reactive portion in the center of each ligand. This modification slightly bent each ligand, enabling the complex to change its structure. Most of this modified tetrahedron morphed into a helical structure, observed with nuclear magnetic resonance (NMR) spectroscopy.
To coax the complex back to a tetrahedral structure, the researchers strengthened the bonds between the ligands and the metal atoms at the corners of the tetrahedron. They replaced the electron-withdrawing 4-fluoroaniline caps on the ends of the ligands with electron-rich 4-methoxyaniline, enhancing the links with iron atoms. The researchers watched the complex switch between the helical and tetrahedral shapes using NMR.
Finally, the researchers wondered if they could change the complex’s structure again using a strategy known to guide supramolecular assembly: anion templating. They added a salt containing PF6 anions to the complex and characterized the resulting prism structure using X-ray crystallography.
It’s the first time that anyone has transformed the structure of a supramolecular complex three different ways, says Xiaopeng Li of the University of South Florida.
James D. Crowley, a chemist at the University of Otago, wonders if these types of structures could overcome a problem observed with confinement catalysts. These cage-like structures facilitate reactions by trapping molecules in closed spaces, but they often clog with product and stall at the end of a reaction, he says. In this case, chemists could catalyze a reaction within the tetrahedron and then trigger a structural change to form a helical complex, forcing out the product.
